HEARTS

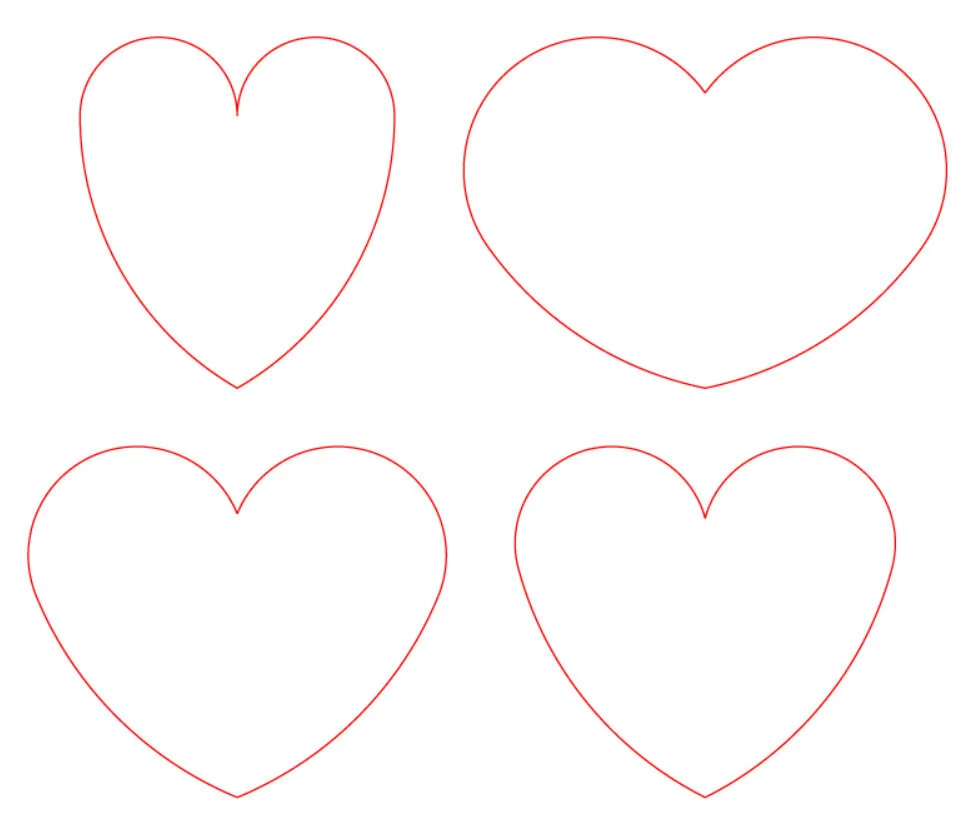

4 different heart shapes. Each heart is comprised of 2 arcs on each half of the heart.
Inspired by a good website on hearts by Takaya Iwamoto. DWG files were downloaded from Takaya’s site and converted to the other file formats.
Overall size for height is 3.” - Individual width size varies depending on heart shape.
Contains cut lines only.
Available file formats - AI , PDF, CDR, SVG and DXF. The CDR file contains hairline stroke for cutting. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke.
Click on the picture to open a PDF file for viewing.
If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.

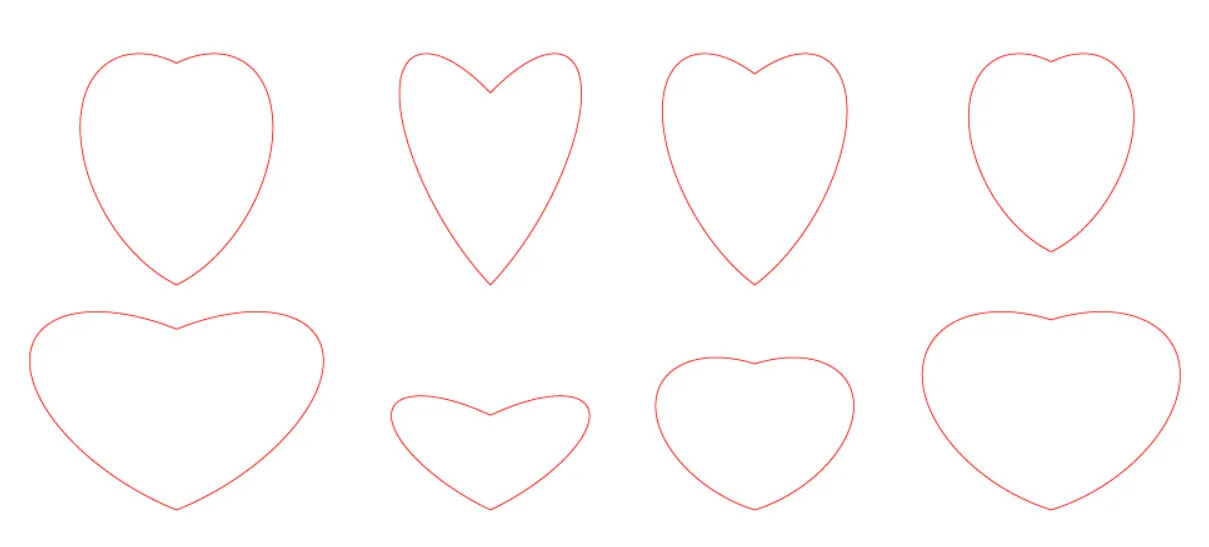

8 different heart shapes using elliptical shapes.
Inspired by a good website on hearts by Takaya Iwamoto. DWG files were downloaded from Takaya’s site and converted to the other file formats.
Overall size for height is 3.” - Individual width size varies depending on heart shape.
Contains cut lines only.
Available file formats - AI , PDF, CDR and SVG. The CDR file contains hairline stroke for cutting. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke.
Click on the picture to open a PDF file for viewing.
If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.
8 different heart shapes. Each heart is comprised of 4 arcs on each half of the heart.
Inspired by a good website on hearts by Takaya Iwamoto. DWG files were downloaded from Takaya’s site and converted to the other file formats.
Overall size for height is 3.” - Individual width size varies depending on heart shape.
Contains cut lines only.
Available file formats - AI , PDF, CDR, SVG and DXF. The CDR file contains hairline stroke for cutting. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke.
Click on the picture to open a PDF file for viewing.
If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.

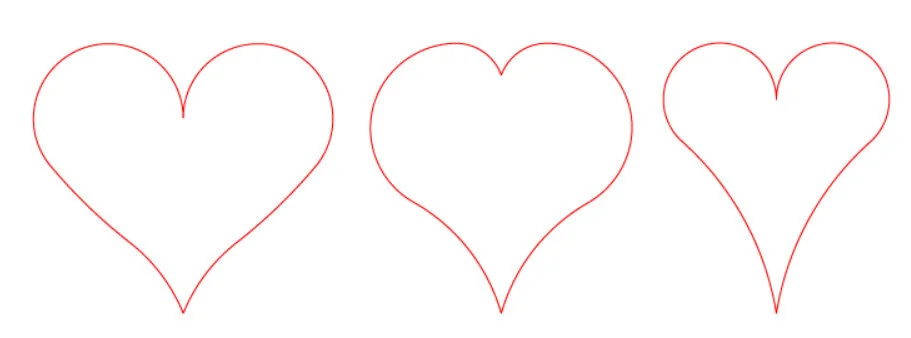

3 different heart shapes.
Inspired by a good website on hearts by Takaya Iwamoto. Files were raster, and I converted to vector using math that was described on his site.
Overall size for height is 3.” - Individual width size varies depending on heart shape.
Contains cut lines only.
Available file formats - AI , PDF, CDR, SVG and DXF. The CDR file contains hairline stroke for cutting. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke.
Click on the picture to open a PDF file for viewing.
If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.
