Boxes
Overall dimensions of layout is 34.845” x 10.407”. Split file as needed to fit laser.
Inside dimensions of box are about 8.45” x 10.125” x 3.15”
File contains vector engrave and cut and is designed for 3mm wood.
3D picture shows what it would look like assembled.
Available file formats - AI , PDF, CDR, DXF, LBRN, SVG. Silhouette Studio, and Affinity Designer. The CDR file contains hairline stroke for cutting and engraving. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke. See the assembly PDF.
EGG 10.125” DOC is a 7 page PDF that documents the assembly.
If you click on the picture EGG 10.125”, it opens a PDF file. If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.
Select one of the buttons below to download a single file, or select the large button below to download a ZIP file of all formats.
top view
Overall dimensions of layout is 44.444” x 15”. Split file as needed to fit laser.
Inside dimensions of box are about 11.5” x 15” x 3.15”
File contains vector engrave and cut and is designed for 3mm wood.
3D picture shows what it would look like assembled.
Available file formats - AI , PDF, CDR, DXF, LBRN, SVG. and studio3. The CDR file contains hairline stroke for cutting and engraving. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke. See the assembly PDF.
EGG 15” DOC is a 6 page PDF that documents the assembly.
If you click on the picture EGG 15”, it opens a PDF file. If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.
Select one of the buttons below to download a single file, or select the large button below to download a ZIP file of all formats.
top view
Overall dimensions of layout is 55.01” x 15.154”
Inside dimensions of box are about 7.5” x 15” x 3.15”
File contains vector engrave and cut and is designed for 3mm wood.
3D picture shows what it would look like assembled.
Available file formats - AI , PDF, CDR, DXF, LBRN, SVG. and studio3. The CDR file contains hairline stroke for cutting and engraving. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke. See the assembly PDF.
ONESIE 3MM DOC is a 6 page PDF that documents the assembly.
If you click on the picture, it opens a PDF file. If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.
Select one of the buttons below to download a single file, or select the large button below to download a ZIP file of all formats.
open view
top view

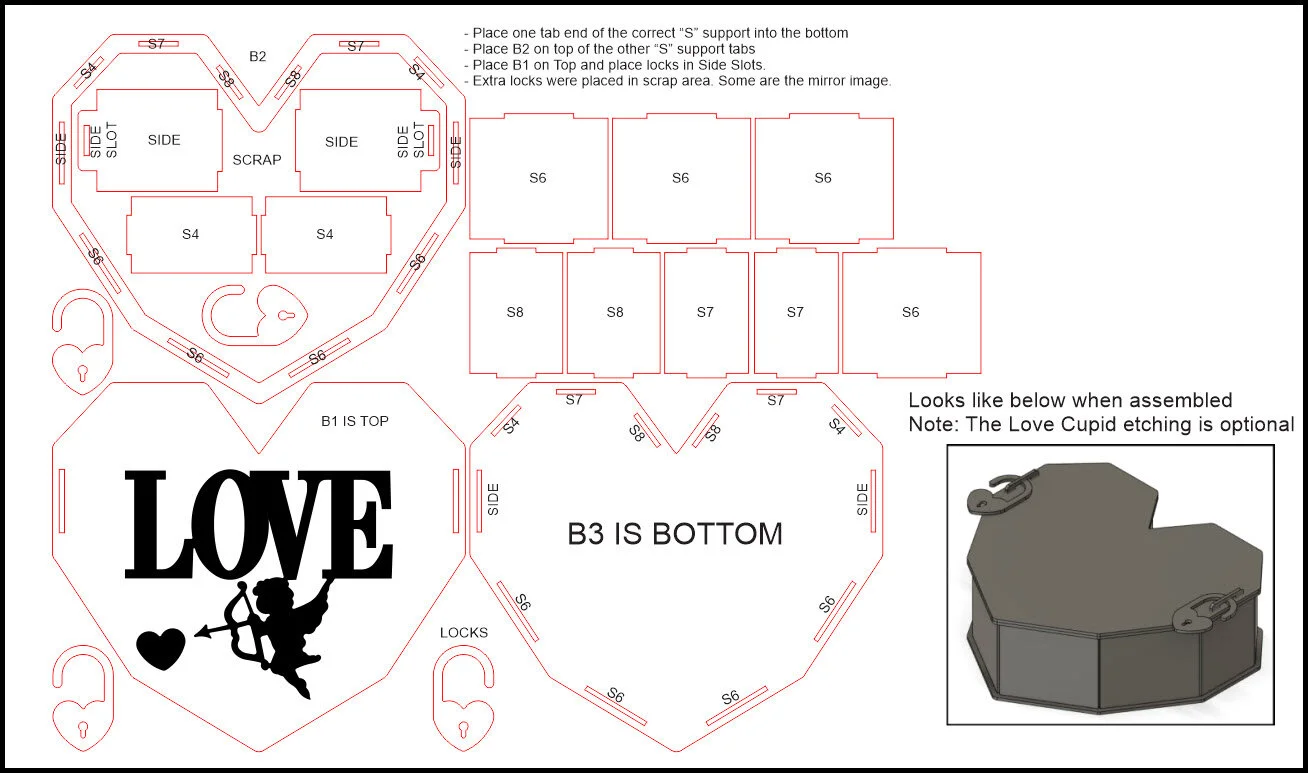

Overall dimensions of layout is 24.213” x 18.708”
Inside dimensions of box are about 9.75” x 8.8” x 3.15”
File contains raster engraving, vector engraving, and cut and is designed for 3mm wood.
3D picture shows what it would look like assembled. The Heart Cupid raster engrave on top is optional
Available file formats - AI , PDF, CDR, DXF, LBRN, SVG. and studio3. The CDR file contains hairline stroke for cutting and engraving. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke. See the assembly PDF.
If you click on the picture, it opens a PDF file. If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.
Select one of the buttons below to download a single file, or select the large button below to download a ZIP file of all formats.
Overall dimensions of layout is 12.722” x 14.879”
Inside dimensions of box are 7.528” x 5.75” x 2”
All lines are cut and designed for 3mm wood.
Picture shows what it would look like assembled.
Available file formats - AI , PDF, CDR, SVG, DXF and LBRN. The CDR file contains hairline stroke for cutting. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke.
If you click on the picture, it opens a PDF file. If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.

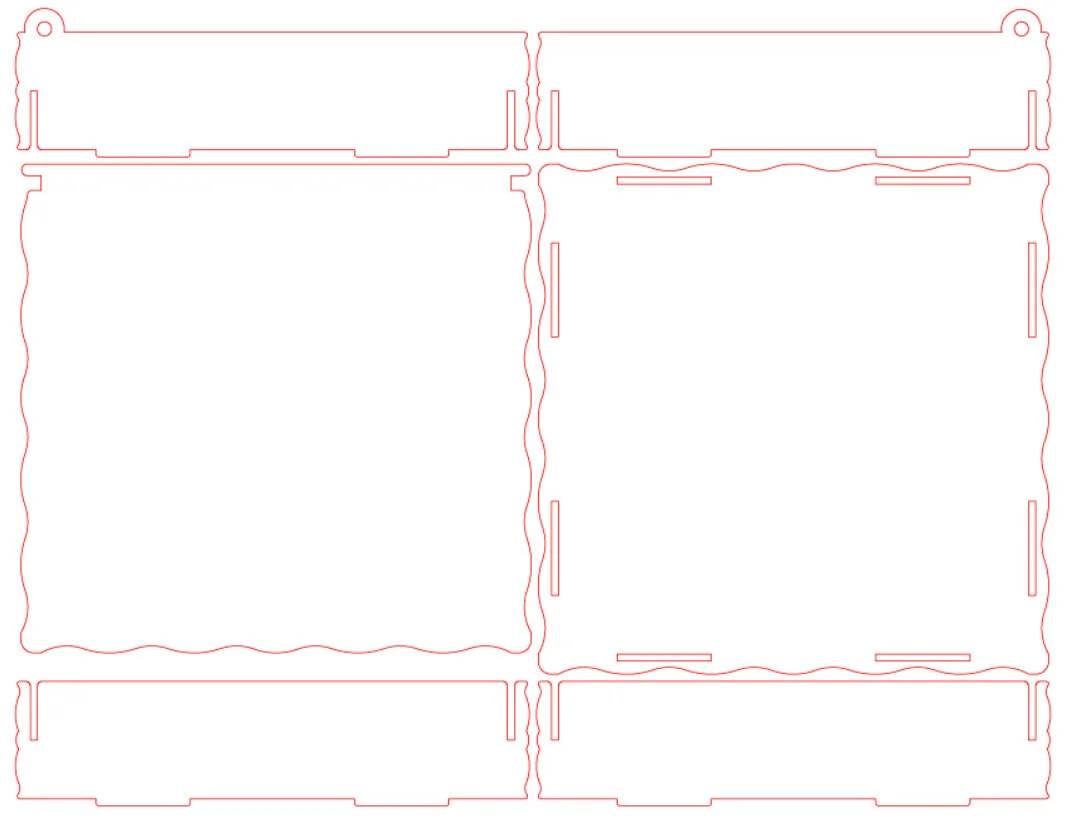

Box with lid - designed for 3mm material.
Inside dimensions are 200mm x 200mm.
Files are setup in mm.
Overall size is 440.35mm x 339.29mm
Overall size is 17.337” x 13.358”
Available file formats - AI , PDF, CDR, SVG, and DXF. The CDR file contains hairline stroke for cutting. The AI and PDF file contain 0.001” stroke. The SVG is 1pt stroke.
If you click on either picture, it opens a PDF file. If you are OK with just that, download it. Otherwise, select the large button below to download a ZIP file of all formats.
